Variador PRO-20SB 20A

22,00 €

Impuestos incluidos

Cantidad:

Size Chart

Measuring Tips to Assure The Best Fit

Measure your back size â€“ wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
To determine the size of pants, measure the girth of the waist 3 and hips 4
The following charts will help you match the designerâ€™s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

	UK	USA	EU	BUST	Waist	Hips
XS	8	4	34	31/32	23/24	33/34
S	10	6	36	33/34	25/26	35/36
M	12	8	38	35/36	27/28	37/38
L	12	8	38	35/36	27/28	37/38
XL	10	6	36	33/34	25/26	35/36

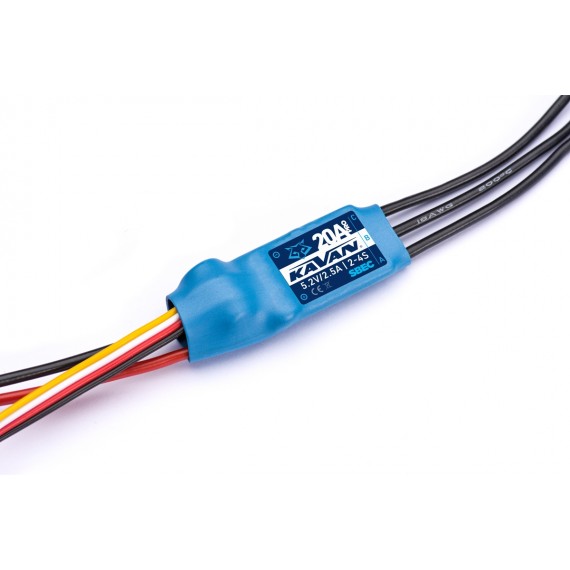

Programmable brushless ESC for aircraft models. Continuous current 20A (peak 30A), 2–4 LiPo cells power, switch-mode BEC 5.2V/2.5A. Weight: 13g; dimensions: 25x15x5mm.

PROGRAMMABLE FUNCTIONS

Brake Type Brake off, normal brake (with braking intensity adjustable in 7 levels), proportional brake (controlled by the throttle control: 0-20% of throttle control deflection corresponds to 100-0% brake, 20-100% of control deflection corresponds to 0-100% throttle), reversing (allows to switch on the reversing of the motor running by another channel with a switch).
Brake Force: The braking intensity is adjustable from Level 1 to Level 7 for "Normal Brake" mode.
Cutoff type: Soft Cutoff: the ESC will gradually reduce power to 50% of full power within 3 seconds after voltage protection is activated. Hard Cutoff.
Number of LiPo cells: We recommend setting manually for 100% reliable voltage protection function. The ESC will automatically calculate the number of cells of the connected battery according to the "3.7 V per cell" rule if you select automatic detection.
Cutoff Voltage: The threshold level of the voltage protection is adjustable from 2.8 to 3.8 V/cell; the protection can also be switched off completely.
BEC Voltage: The BEC voltage is adjustable to 5.2 V, 6.0 V or 7.4 V.
Start-up Mode: Normal start-up (instant start-up), Soft start-up (with slow start for motors with large propellers, gearbox or smaller EDF), Very soft start-up (with very slow start for motors with large propellers, gearbox or EDF from 90 mm).
Timming: Adjustable from 0-30°.
Motor direction: CW/CCW
DEO Freewheeling: This feature can be turned on or off; it can provide better linearity or smoother throttle response.
