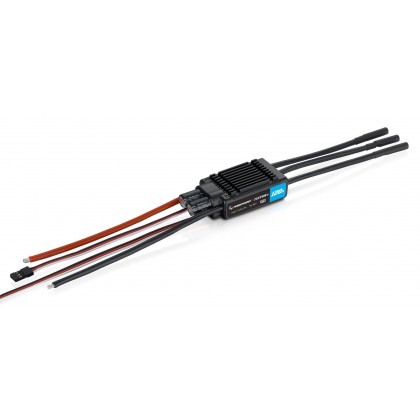

FlyFun 120A V5 SBEC

FlyFun 120A V5 SBEC 6S-V5

Últimas unidades en stock
89,90 €
Impuestos incluidos
Cantidad:

Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36

Specifications

  • DEO Technology / Active Freewheeling
  • Rapider and smoother throttle response, better stability and flexibility during flight
  • Higher driving efficiency, longer flight time
  • Lower ESC temperature, more reliable operation
  • Normal Brake Mode
  • Proportional Brake mode
  • Brake Disabled mode
  • New design brings exquisite look and good heat-dissipating performance
  • Available in high-voltage/regular version with different Amps

Technical specifications

  • Type
    • Brushed/Brushless: BL
    • High Voltage/Regular: Regular
    • Cont./Peak Current: 120A/150A
    • Input: 3-6S LiPo
    • BEC Output: Switch Mode: 5.2V/6V/7.4V, 8A/20A
  • Wires & Connectors
  • Input Wires: Red-12AWG-150mm*1 / Black-12AWG-150mm*1
  • Output Wires: Black-12AWG-150mm*3
  • Input Connectors: No
  • Output Connecotors: 4.0 Gold Connectors (Female)
  • ESC Programing via
    • Transmitter: Supported
    • LED Program Card: Not Supported
    • LED Program Box: Supported
    • LCD Program Box: Not Supported
    • WiFi Module: Not Supported
    • Program Port: Separate Program Wire
  • Firmware Upgrade: Not Supported
  • Size: 77.2x34.6x19.2mm
  • Weight: 93g
