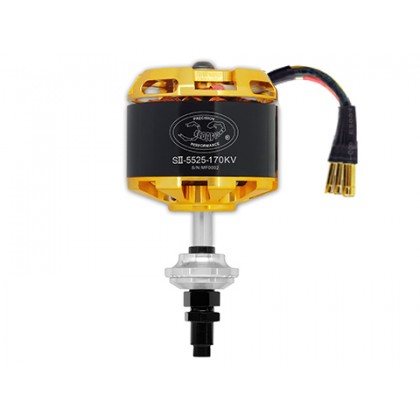

SII-5525-170KV

No hay suficientes productos en stock
309,99 €
Impuestos incluidos
Cantidad:


Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36

Suggestion :

This motor is perfect for any 30-40cc airframes, or aerobatic airplanes with Wingspan of 73-78" running on 12s batteries.

On 12 cells, maximum prop size is 20x10 or 21x8 and is intended for freestyle airplanes with intermittent full throttle use.



Recommended set up :

ESC - Tribunus 12-130A SBEC ESC

Batteries - 12s 4000-5000mah

Prop - 20x10E , 21x8E

Specifications

Stator Diameter 55mm (2.165 in)
Stator Thickness 25mm (0.984 in)
No. of Stator Arms 12
Magnet Poles 14
Motor Wind 22 Turn Delta
Motor Wire 16-Strand 0.33mm
Motor Kv 170 RPM / Volt
No-Load Current (Io/10V) 0.78 Amps
Motor Resistance (Rm) 0.042 Ohms
Max Continuous Current 70 Amps
Max Continuous Power 3108 Watts
Weight 708 Grams (22.98 oz)
Outside Diameter 66.4 mm (2.614 in)
Shaft Diameter 7.98 mm (0.314 in)
Thread size M8*1.0
Body Length 59.82 mm (2.355 in)
Overall Shaft Length 106 mm (4.173 in)
Max Peak Current 105 Amps
Max Peak Power 4662 Watts
Max Lipo Cell 12s
Motor Timing 5deg
Drive Frequency 8kHz

Included in the Box

1x Scorpion SII-5525-170Kv Motor
3x Female Connectors
3x Heat Shrink
1x Cross Motor Mount
4x Screw
1x Thrust washer
1x tapered collar
1x spacer collar
1x Prop washer
1x Prop nut
2x Nut lock

Data Chart

View Scorpion SII-5525-170KV Data Chart

Full Dimension

View Scorpion SII-5525-170KV Full Dimension

S-5525-170KV
