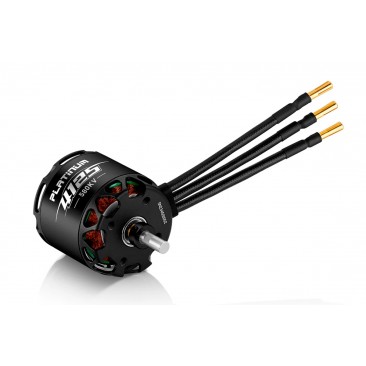

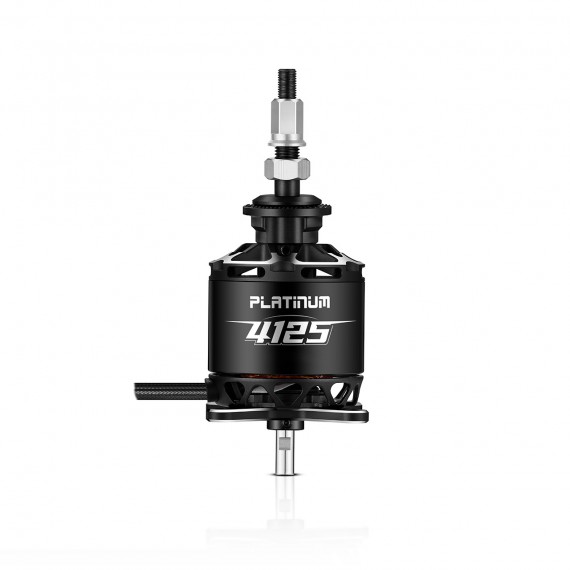

Platinum 4125SL-580KV

96,90 €
Impuestos incluidos
Cantidad:

Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36
Type: Brushless
kV Rating: 580KV
No-Load Current: 3,9/22.2V
Resistance: 9,5m Ohm
LiPo Cells: 6S LiPo
Slots & Poles: 12N14P
Max. cont. Current: 119,7A/1min17s
Max. cont. Power: 2289W/1min17s
Max. Schub: 7,35KG
Bearing: 696ZZ
Diameter: 49.5mm
Length: 77,3mm
Shaft Diameter: 6mm
Weight: 370g
Recommended ESC: Platinum 120A V5
Props: 5S 15x8E, 16x8E 6S: 14x6E, 14x7E, 15x6E
Clip Mounting Hole Thread: D:15mm-3xM4
Base Thread: D:30mm-4xM4
