RS-3420 10.5T

No hay suficientes productos en stock

89,00 €

Impuestos incluidos

Cantidad:

Size Chart

Measuring Tips to Assure The Best Fit

Measure your back size â€“ wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
To determine the size of pants, measure the girth of the waist 3 and hips 4
The following charts will help you match the designerâ€™s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

	UK	USA	EU	BUST	Waist	Hips
XS	8	4	34	31/32	23/24	33/34
S	10	6	36	33/34	25/26	35/36
M	12	8	38	35/36	27/28	37/38
L	12	8	38	35/36	27/28	37/38
XL	10	6	36	33/34	25/26	35/36

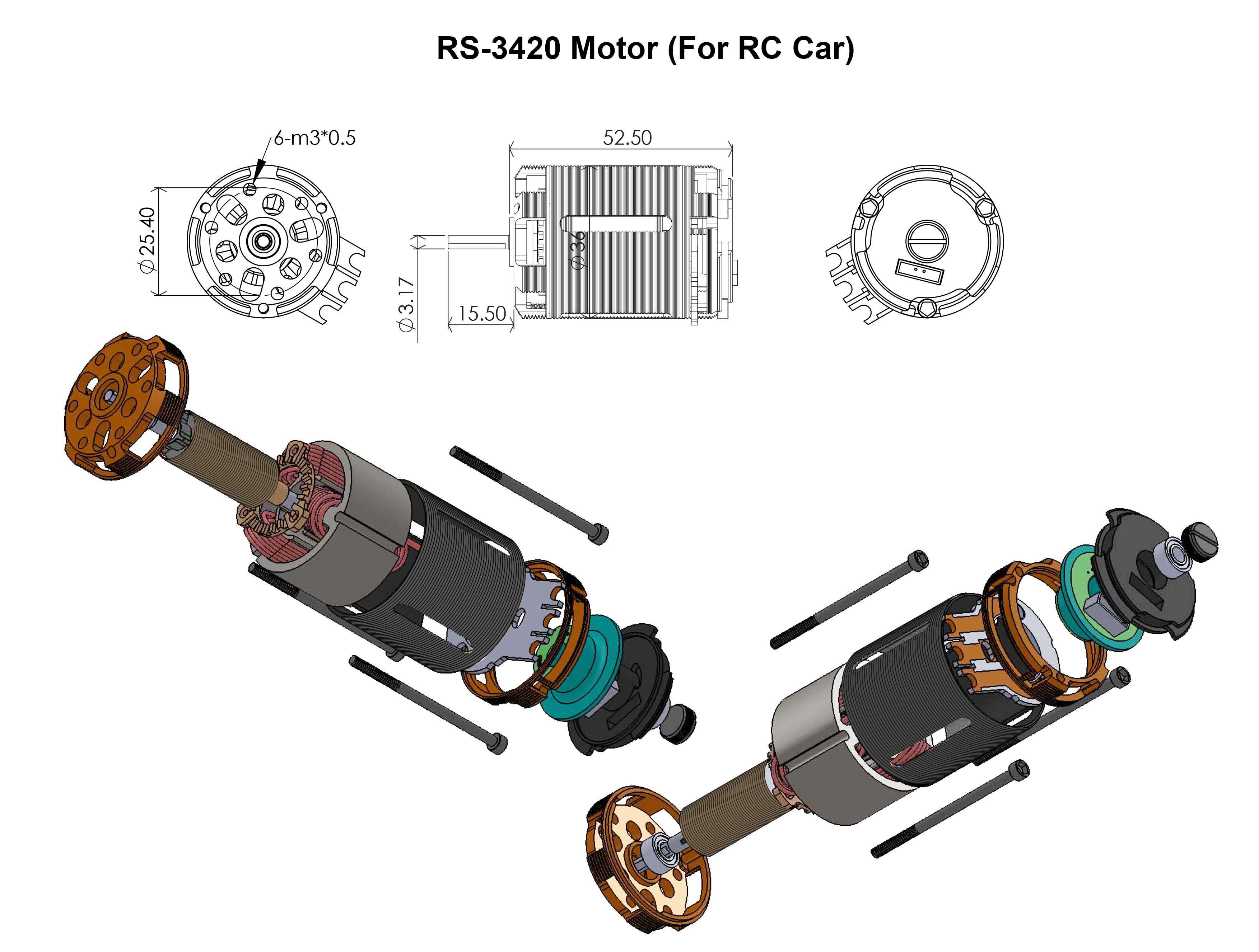

Scorpion Power Systems RS-3420 series Brushless DC car motor. These motors are designed to meet and comply with all standards set forth by IFMAR for use in 1/10th and 1/12th scale electric powered RC racing cars. Scorpion motors are designed from the ground up to meet the demanding needs of racing enthusiasts, and are built with efficient, high-temperature components that allow them to produce the maximum power and speed that is possible. Years of research and development by top engineers and hands on testing by professional drivers has allowed us to make the RS-3420 series the best motors available on the market today!

• Patented Screw-type rotor surface to increase flux density and maximize cooling

• Built-in Cooling Fan on the rotor to increase airflow and decrease internal temperatures

• No plastic inserts are used to achieve maximum copper fill for the motor windings

• Rotor magnets are protected by a metal sleeve for maximum durability

• Built-in temperature sensors allow for on-track monitoring when used with Scorpion ESC

• 200% more cooling surface than other comparable motors for better heat dissipation

• The largest glued surface for the rotor, shaft and magnets of any motor in its class

• High grade Silicon Steel is used in the stator assembly for maximum flux density

• High purity copper wire is used for minimum internal resistance

• High temperature magnets are used to take the heat of competition

• Motor parts CNC machined from 7075 aerospace grade aluminum alloy

Specifications

Stator Diameter	34 mm (1.34 in)
Stator Thickness	21 mm (0.83 in)
No. of Stator Arms	3
No. of Stator Poles	2
Motor Wind	10.5T Y
Motor Wire	1-Strand 1.64 mm
Motor Kv	3130KV RPM/Volt
No-Load Current (Io/8V)	1.8 Amps
Motor Resistance (RM)	0.181 Ohms
Max Continuous Current	55 Amps
Max Continuous Power	420 Watts
Weight	167.4 Grams (5.9 oz)
Outside Diameter	36 mm (1.41 in)
Shaft Diameter	3.17 mm (0.12 in)
Body Length	52.65 mm (2.07 in)
Overall Shaft Length	67.4 mm (2.65 in)
Rotor Magnet Diameter	12.5mm (0.49 in)
Max Lipo Cell	2s
Max Peak Current	66 (2 seconds)
Max Peak Power	504 Watts (2 seconds)
Motor Timing	Adjustable deg
Drive Frequency	8kHz
