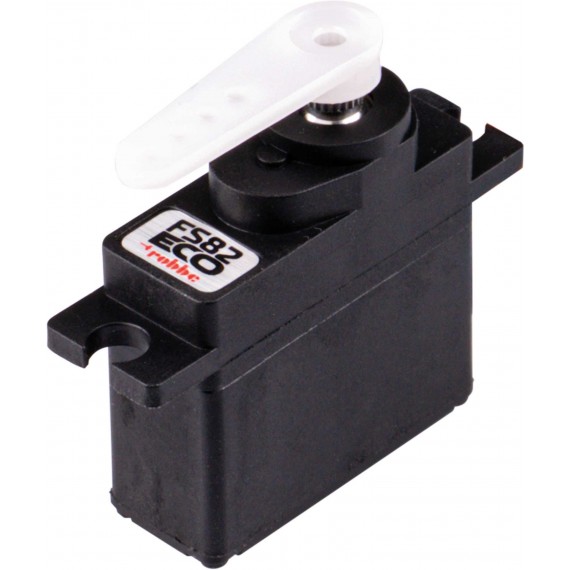

FS 82 HV MG Eco Digital

16,90 €
Impuestos incluidos
Cantidad:

Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36
Bearing: ••
Servo Speed sec./60°: 0,07, 0,08, 0,1
Servo Torque kg/cm: 4,4, 5,7, 6,5, 7,3
Gearbox Type: Metal
Weight (g): 18
Length (mm): 29,8
Width (mm): 12
Height (mm): 32
Servo-type: High Voltage
Gear tooth: 25Z/4,93mm
Opering voltage (V): 4,8 - 8,4
Torque kg/cm (4,8V): 4,4
Speed sec./60° (4,8V): 0,1
Torque kg/cm (6V): 5,7
Speed sec./60° (6V): 0,1
Torque kg/cm (7,4V): 6,5
Speed sec./60° (7,4V): 0,14
Torque kg/cm (8,4V): 7,3
Speed sec./60° (8,4V): 0,07
9145
