Servo digital alas 8Kg

No hay suficientes productos en stock

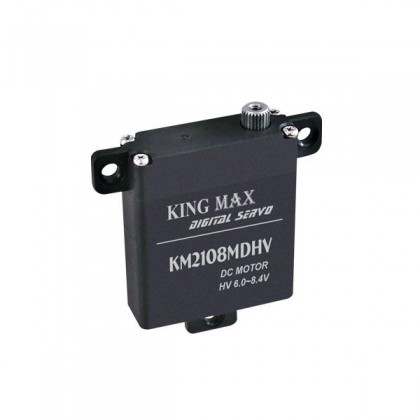

KM2108MDHV 8kg.cm,digital,metal gears wing servo

22,00 €

Impuestos incluidos

Cantidad:

Size Chart

Measuring Tips to Assure The Best Fit

Measure your back size â€“ wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
To determine the size of pants, measure the girth of the waist 3 and hips 4
The following charts will help you match the designerâ€™s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

	UK	USA	EU	BUST	Waist	Hips
XS	8	4	34	31/32	23/24	33/34
S	10	6	36	33/34	25/26	35/36
M	12	8	38	35/36	27/28	37/38
L	12	8	38	35/36	27/28	37/38
XL	10	6	36	33/34	25/26	35/36

-- High performance, digital high voltage wing servo
-- High-precision metal gears with hard anodizing
-- High quality DC motor
SPECIFICATIONS:
Operating Speed (6.0V): 0.14sec/60 degrees
Operating Speed (7.4V): 0.12sec/60 degrees
Stall Torque (6.0V): 6.8kg.cm (94.5oz/in)
Stall Torque (7.4V): 7.9kg.cm (109.7oz/in)
Potentiometer Drive: Direct Drive
Dimensions: 30X10X35.5 mm /1.17 X0.39X1.38in
Weight: 21g (0.74oz)
Connector Wire Length: JR220 mm (8.58in)

Gear：	Full metal
Spline：	Exclusive
Motor：	DC motor
Bearing：	2BB
Dead band：	2μs default
Waterproof：	No
Operating Voltage：	DC6.0~7.4V
Working frequence：	1520μs/330hz
