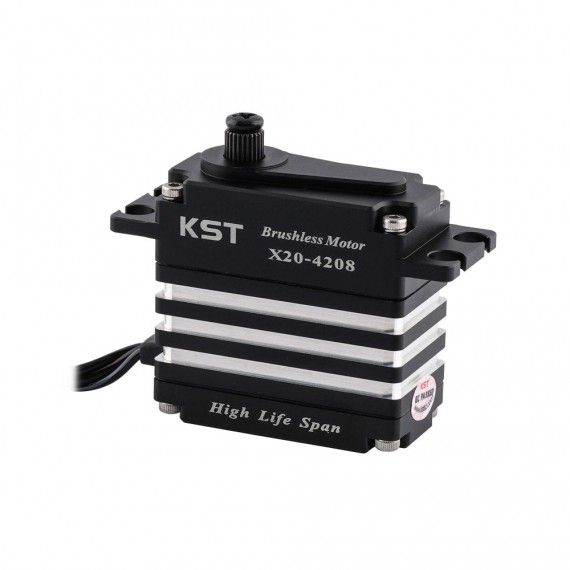

KST X20-4208 servo 46kg

149,90 €
Impuestos incluidos
Cantidad:

Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36

Specification

  • Item: X20-4208 Brushless Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC6.0V-8.4V
  • Torque: 38Kgf.cm@6.0V, 42Kgf.cm@7.4V, 46Kgf.cm@8.4V
  • Speed: 0.10sec/60°@6.0V, 0.08sec/60°@7.4V, 0.07sec/60°@8.4V
  • Stalling Current: 8.80A@6.0V, 10.8A@7.4V, 12.3A@8.4V
  • Working Frequency: 1520us/333Hz
  • Default Travel Angle: ±100° =200° Total
  • Total Temperature Range: -20℃……+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Case Material: Aluminum Alloy
  • Motor Type: 4 Pole Brushless DC Motor
  • Gear Set Material: Hardened Steel/ HLS
  • Position Sensor: Contactless
  • Ball Bearing: 6BB
  • Waterproof: IP65
  • Case Dimensions: 40mm*20mm*40mm±0.2mm
  • Weight: 80g±10%

Features

  • 4 Pole Brushless DC Motor, with fast response and high efficiency
  • Extreme torque & Excellent speed
  • Hardened steel gear & CNC aluminum case
  • 6 Ball Bearings
  • IP65 splash-proof
  • Working Frequency is up to 1520us/333Hz
  • Programing box/USB link compatible
  • Designed for 1:7 & 1:8 scale on-road or off-road RC Race cars (racing, buggy, truggy). Also suitable for high performance aerobatic airplanes, jets, scale models and more.

X20-4208
