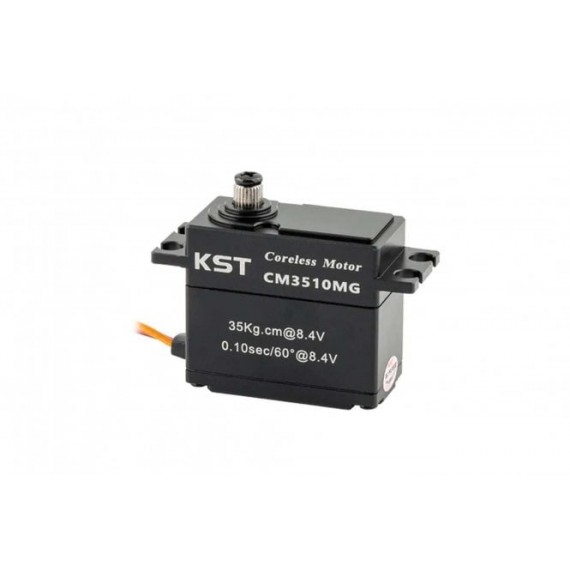

KST CM3510MG 30.0kg

58,90 €
Impuestos incluidos
Cantidad:

Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36

 Feature

  • Ultra High Torque & Excellent Speed
  • IP65 Waterproof
  • Double Ball Bearings
  • Coreless DC Motor
  • CNC Aluminium Case
  • Hardened Steel Gear
  • Support Soft Start
  • Programmable

Specification

  • Item: CM3510MG Servo
  • Rated Voltage: DC7.4V
  • Voltage Range: DC4.8V-8.4V
  • Torque: 20Kgf.cm@4.8V / 25Kgf.cm@6.0V / 30Kgf.cm@7.4V / 35Kgf.cm@8.4V
  • Speed: 0.20sec/60°@4.8V / 0.15sec/60°@6.0V / 0.13sec/60°@7.4V / 0.10sec/60°@8.4V
  • Stalling Current: 2.10A@4.8V / 2.90A@6.0V / 3.30A@7.4V / 3.65A@8.4V
  • Working Frequency: 1520μs/333Hz
  • Default Travel Angle: ±50° =100° Total
  • Temperature Range: -10℃……+65℃
  • Soft Start: Yes
  • Programmable: Yes
  • Case Material: Aluminum Alloy
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Metal gear
  • Position Sensor: Potentiometer
  • Ball Bearing: 2BB
  • Waterproof: IP65

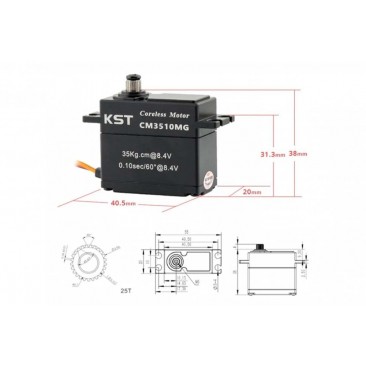

  • Case Dimensions: 40.5mm*20mm*38mm±0.2mm
  • Weight: 70g±10%

CM3510MG
