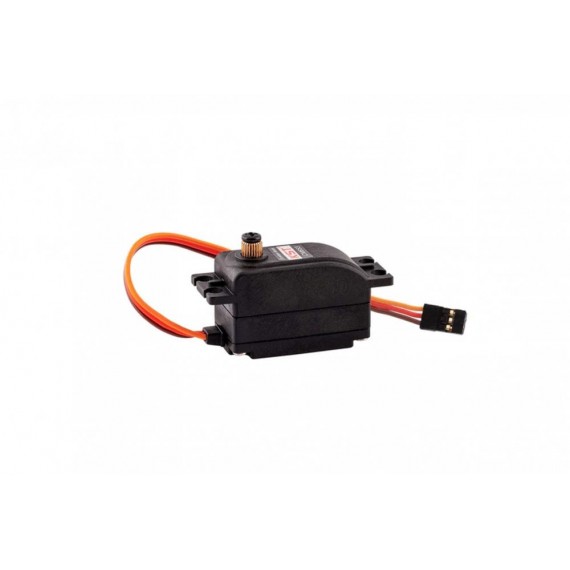

CM653 low profile 18kg

29,00 €
Impuestos incluidos
Cantidad:

Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36

Specification

  • Item: CM653 Low Profile Servos
  • Rated Voltage: DC7.4V
  • Voltage Range: DC4.8V-8.4V
  • Torque:

10Kgf.cm@4.8V
12Kgf.cm@6.0V
15Kgf.cm@7.4V
18Kgf.cm@8.4V

  • Speed:

0.12sec/60°@4.8V
0.10sec/60°@6.0V
0.09sec/60°@7.4V
0.08sec/60°@8.4V

  • Stall Current:

2.60A@4.8V
3.20A@6.0V
3.60A@7.4V
4.05A@8.4V

  • Working Frequency: 1520μs/333Hz
  • Default Travel Angle: ±50° =100° Total
  • Temperature Range: -10℃……+65℃
  • Soft Start: Programmable
  • Programmable: Yes
  • Motor Type: Coreless DC Motor
  • Gear Set Material: Metal Gear
  • Position Sensor: Potentiometer
  • Ball Bearing: 2BB
  • Waterproof: IP65

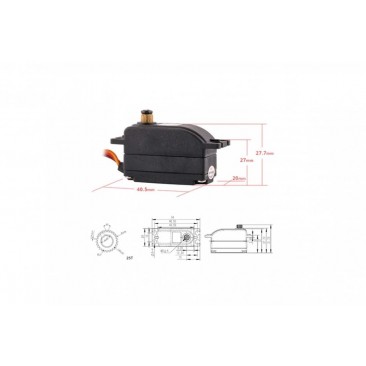

  • Case Dimensions: 40.5*20*27.5±0.2mm
  • Weight: 43g±10%

CM653
