Servo cola FS0521THV

No hay suficientes productos en stock

89,00 €

Impuestos incluidos

Cantidad:

Size Chart

Measuring Tips to Assure The Best Fit

Measure your back size â€“ wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
To determine the size of pants, measure the girth of the waist 3 and hips 4
The following charts will help you match the designerâ€™s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

	UK	USA	EU	BUST	Waist	Hips
XS	8	4	34	31/32	23/24	33/34
S	10	6	36	33/34	25/26	35/36
M	12	8	38	35/36	27/28	37/38
L	12	8	38	35/36	27/28	37/38
XL	10	6	36	33/34	25/26	35/36

Color: Red.

Dimension: 20x37x40mm

Weight: 70g

Frequency: 760µs/333hz

Gear Type: Metal Gear

Operation Voltage: 6V-8.4V

Motor Type: Coreless Motor

Features:

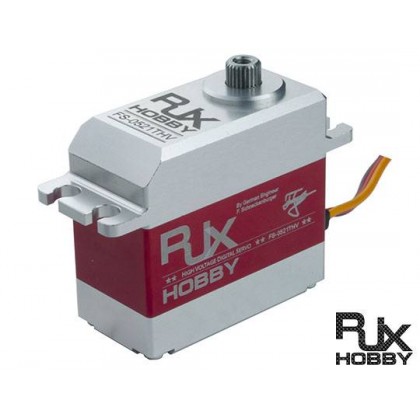

The RJX FS-0521THV-Tail provides the ultimate in performance for standard size servos.

Specially made to be used on Helicopter Tail, fits 760µs/333hz.

The FS-0521THV is a true high-voltage servo capable of operating at a constant 8.4V, yet still yields impressive numbers at as low as a 6V input. This makes it a very versatile servo which can be used in many different applications.

A full set of servo hardware is included, as well as an alloy servo arm ideal for use with helicopter cyclic servo applications.

Special Narrow Band version for Tail servo used in Helicopters.

Full Metal Gears / Full Aluminum Alloy Case

Torque

8.4kg/cm(116.7oz/in)@6V

9.6kg/cm(133.3oz/in)@7.4V

10.6kg/cm(147.2oz/in)@8.4V

Speed

0.035(sec/60°)@6V

0.032(sec/60°)@7.4V

0.03(sec/60°)@8.4V
