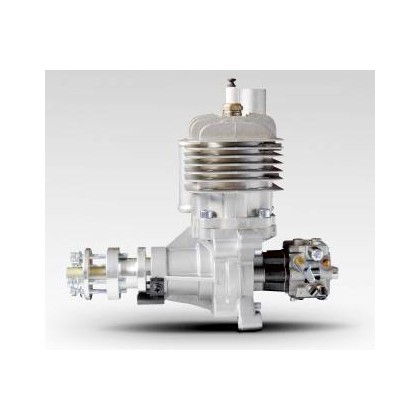

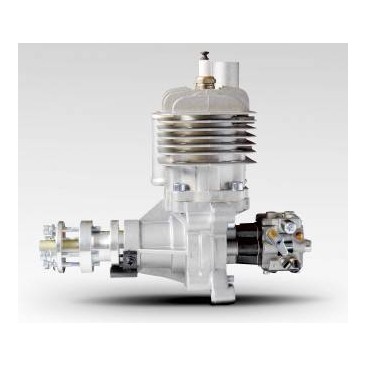

DLE-30

DLE-30

No hay suficientes productos en stock
299,00 €
Impuestos incluidos
Cantidad:


Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36

Electronic ignition provides the spark for fast starting. Timing automatically adjusts for peak power throughout the rpm range. And a made-for-flight design ensures the best power-to-weight ratio for performance.

A rear-mounted pumper carb ensures easier installs and smooth idling before you fly — and dependable fuel flow while you are flying.


DLE electronic ignition
DLE electronic ignition
Electronic ignition is the no-hassle answer to simpler starts, higher performance and minimal RF noise.
Included parts
Loaded with "extras!"
With DLE, accessories are an added value instead of an extra cost. The DLE-30 package includes electronic ignition, a muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & manual.


Specifications:
Stock Number: DLEG0031
Displacement: 30.5 cc (1.861 cu in)
Bore: 1.42 in (36 mm)
Stroke: 1.18 in (30 mm)
Weight: 2.4 lb (1.10 kg)
RPM Range: 1,600-8,500
Output: 3.7 hp @ 8,500 rpm
Requires: Gasoline, oil, ignition battery & propeller
Includes: electronic ignition, muffler, spark plug, gasket, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 18x8, 18x10, 19x8 & 20x8
Suggested Break-in Prop: 18x8


Technical Data:
Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack
Compression Ratio: 7.6:1
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weight Breakdown: Engine: 32.1 oz (910 g); Muffler: 2.1 oz (60 g); Ignition: 4.2 oz (120g)
