Revolt F4

La Revolt es muy fácil de soldar y configurar. Los orificios pasantes se doblan como pastillas para soldar fácilmente los cables. Basta con soldar las almohadillas de esquina más cercanas marcadas M1, M2, M3 o M4. La Revolt requiere una alimentacion de 5v BEC. Las almohadillas en la parte inferior de la placa se pueden puentear para 5V o 3v3V segun el receptor ( Spektrum 3.3v - Taranis y Futaba 5v). La Revolt también tiene la capacidad de encender una luz del LED y un zumbador. Simplemente siga los diagramas de PINOUT a continuación para ver cómo puede conectar todo a la Revolt.

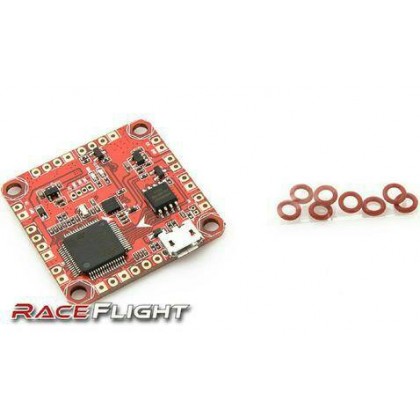

RaceFlight Revolt Revolt The RaceFlight Revolt flight controller is the most advanced, performance driven, flight controller every designed. Capable of running 32kHz gyro sample and PID loop, the Revolt is truly at the top of its class. The Revolt uses a F405 MPU and a super secret gyro (SSG) in combination with RaceFlight’s proprietary software to give you the BEST performance possible. Performance The Revolt presents not only the BEST performance, but also the most STABLE performance due to the amazing vibration rejection technology implemented in RaceFlight. Our filters allow your quad to stay in the air no matter what! Damaged propellers caused by that insane gate clip on turn 3? Not a problem. You can still finish the race! In addition to the vibration rejection technology, the SSG gives you the highest speeds currently possible with the lowest noise floor and highest sensitivity. The SSG has never been used in any flight controller before and definitely gives you the leading advantage over others. Setup Simplicity Simply install the Revolt onto your quad and get in the air right away – without the need for complicated tuning. The Revolt comes pre-configured with our latest official release of RaceFlight software for either FrSky or Spektrum (though it can be used on other receiver protocol brands as well). The solder pin layout is easy to read with motor connections in each corner. Just solder the closest motors and remember the order 1, 2, 3, 4. Zadig and other complicated driver configuration tools are a thing of the past with the Revolt’s new driverless installation technology. Tired of messing around with Zadig or DFU to update your software? The Revolt also features DFU free updating and a self-healing and updating bootloader, just in case something does go wrong. Features LED Driver for WS2812b programmable LED Infrared LED Race Transponder support – no need for separate transponder SBUS Inversion Future iPhone and Android configurator support High Speed 32khz gyro, lowest noise floor and highest sensitivity gyro every used Through hole solder pads – forms an I-Beam when soldered for extra strength FrSky Taranis, Spektrum, Futaba, JR, IBus, Sbus and other radio support Integrated buzzer driver Full telemetry output support ESC flashing and configuration built into configurator Most active software development Selectable 3.3 voltage 3 serial uarts Bluetooth expandable F4 processor GPS expandable Dimensions: 36mm x 36mm Mounting holes: 30.5mm squared to center of holes The Revolt Wiring Diagram can be found here - http://revoltfc.com/pinout-diagram.html If you're experiencing difficulties connecting to your Revolt FC via Windows or installing the drivers needed then please check out these videos kindly produced by Raceflight themselves... Zadig is Free to use Software can be found here - ZADIG
