Controladora frenos con giroscopo

65,00 €

Impuestos incluidos

Cantidad:

Size Chart

Measuring Tips to Assure The Best Fit

Measure your back size â€“ wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
To determine the size of pants, measure the girth of the waist 3 and hips 4
The following charts will help you match the designerâ€™s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

	UK	USA	EU	BUST	Waist	Hips
XS	8	4	34	31/32	23/24	33/34
S	10	6	36	33/34	25/26	35/36
M	12	8	38	35/36	27/28	37/38
L	12	8	38	35/36	27/28	37/38
XL	10	6	36	33/34	25/26	35/36

Description

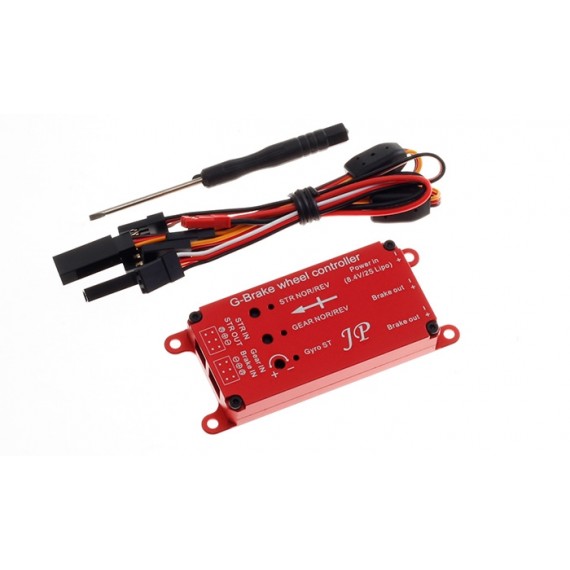

Adjustable control Box for JP Hobby electric brakes. This control box features an aluminum case for protection with mounting tabs for easy installation. It also allows the braking tension to be independently adjusted for each wheel with the simple turn of a screwdriver along with a gyro to keep the plane steering straight.

Specifications:

Input Voltage：7.4V (2S lipo)
Output Voltage: 7.4V
Size: 80 x 34 x 11mm
Weight: 42g

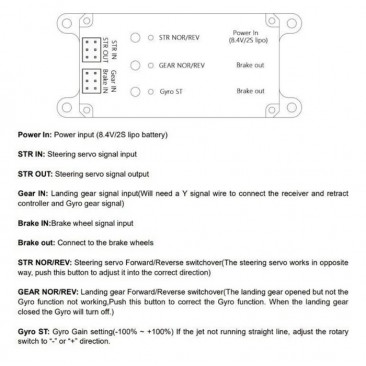

JP Pilot RC E-Brake Using illustration

Direct power supply from an additional dedicated 2S battery.
Connects directly to the receiver on the Rudder channel, retractable gears, and a 2-position switch.
The controller is equipped with a gyroscope which acts on the steering servo of the front wheel to keep your model on the axis of the landing way when braking.
the gyroscope becomes inactive when the gear is retracted as does the front wheel servo.
You can reverse the rotation direction of the front wheel servo.
you can reverse the direction of the in/out or out/in retracts.
You can adjust the brake strength with your radio. +/-100% (or a higher value like +/-140% if your radio allows it) is the maximum power. You can modify this value to obtain softer braking but always start by testing with the maximum value.
