Guia de taladro helice 30cc-60cc

16,00 €
Impuestos incluidos
Cantidad:

Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36

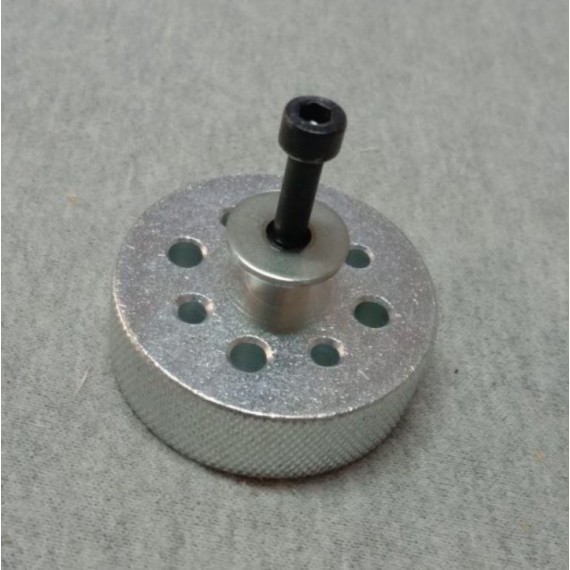

With the Pilot-RC Prop drill guide, the problem of drilling straight holes for your prop bolts is a thing of the past.

Currently available in one size which, which contains two sets of bolt holes (one set at 29mm and one set at 30mm) so you can find the suitable size for your engine.

Based on our tests, the drill guide is suitable for the following engines:

DA Engines:

  • DA35 (29mm)
  • DA60 (30mm)

GP Engines:

  • GP38 (29mm)
  • GP76 (30mm)
  • GP61 (30mm)

3W Engines:

  • 3W55 (29mm)

DLE Engines:

  • DLE55 (30mm)
  • DLE55RA (30mm)
  • DLE60 (30mm)
  • DLE61 (30mm)
  • DLE65 (30mm

Simply screw the prop to the drill guide and drill through the metal hub into the prop. The metal hub will keep the drill bit straghter allowing a more precise hole for each of your prop bolts.

For the best results, the drill guide should still be used in conjunction with a drill press.

PGT50
