Servo digial 23kg

Servo digial 23kg 8 unidades

Últimas unidades en stock

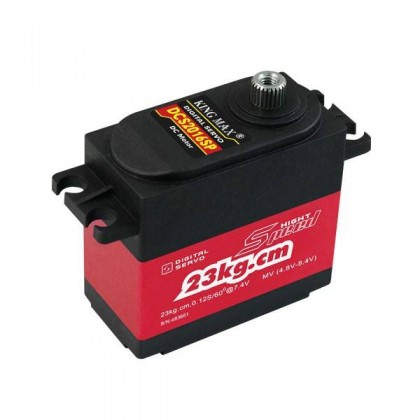

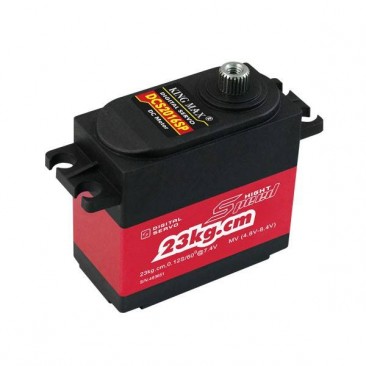

DCS2016SP--60g 23kg.cm,high voltage,standard servo

224,00 €
Impuestos incluidos

Financia tu compra

cuotas
23,67 € / mes en 12 cuotas
Cantidad:

Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36
Gear: Full metal
Spline: 25T
Motor: DC motor
Bearing: 2BB
Dead band: 2μs default
Waterproof: Yes
Operating Voltage: DC5.0~8.4V
Working frequence: 1520μs/330hz

FEATURE:

-High performance, standard, Multivoltage digital servo

-High-precision 7075 aluminium gear

-Long-life potentiometer

-Middle CNC aluminium case

-High quality DC motor

-Dual ball bearing

-Waterproof

SPECIFICATIONS:
Operating Speed(4.8V): 0.16sec/60degrees

Operating Speed(6.6V): 0.14sec/60degrees

Operating Speed(7.4V): 0.12sec/60degrees

Operating Speed(8.4V): 0.11sec/60degrees

Stall Torque(4.8V): 17kg.cm(236.13oz/in)

Stall Torque(6.6V): 20.5kg.cm(291.69oz/in)

Stall Torque(7.4V): 23kg.cm(319.47oz/in)

Stall Torque(8.4V): 26kg.cm(319.47oz/in)

Size:40.7x20.4x39.5mm (1.60x0.80x1.55in)
Weight:60g (2.12oz)
Connector Wire Length: 250mm(9.84in)

DCS2016SP8
