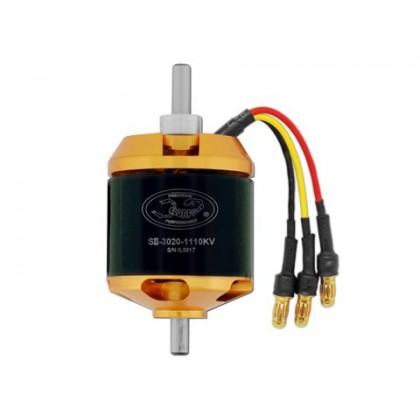

SII-3020-1110KV (V2)

SII-3020-1110KV (V2)

Últimas unidades en stock
85,00 €
Impuestos incluidos
Cantidad:

Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36

Included in the Box

1 x Scorpion SII-3020-1110KV Motor
1 x Scorpion 30mm Cross Mount
1 x Scorpion 5mm Threaded Prop Adapter
3 x Female Connectors
3 x Heat Shrink
4 x M3 Screws

Weight including packaging

324g

Data Chart

View Scorpion SII-3020-1110KV (V2) Data Chart

Stator Diameter 30.0 mm (1.18 in)
Stator Thickness 20 mm (0.79 in)
No. of Stator Arms 12
Magnet Poles 14
Motor Wind 8 Turn Delta
Motor Wire 17-Strand 0.25mm
Motor Kv 1110 RPM / Volt
No-Load Current (IO/10V) 2.08 Amps
Motor Resistance (Rm) 0.016 Ohms
Max Continuous Current 60 Amps
Max Continuous Power 840 Watts
Weight 166 Grams (5.86 oz)
Outside Diameter 37.50 mm (1.47 in)
Shaft Diameter 4.98 mm (0.196 in)
Body Length 45.75 mm (1.80 in)
Overall Shaft Length 74.5 mm (2.93 in)
Max Lipo Cell 4s
Motor Timing 5deg
Drive Frequency 8kHz
