DLE 61

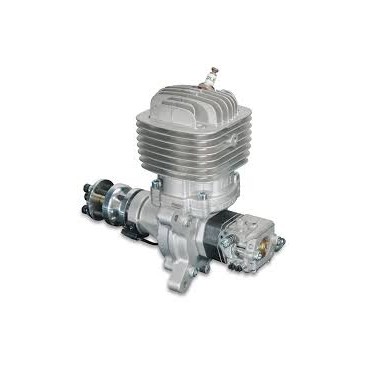

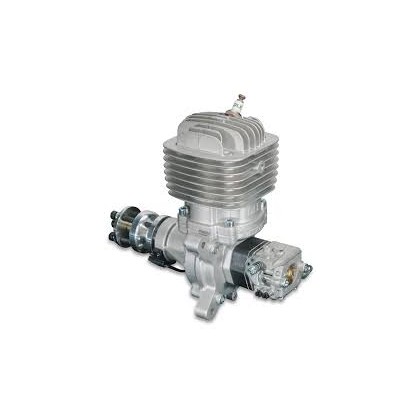

DLE-61

449,00 €
Impuestos incluidos
Cantidad:

Size Chart
x
Size Chart

Measuring Tips to Assure The Best Fit

  • Measure your back size – wrap the measuring tape snugly around your ribcage, just under your bust line 1, keeping it horizontal. This will give you your band size.
  • Then measure around the fullest part of your bust 2 , again keeping the tape horizontal.
  • To determine the size of pants, measure the girth of the waist 3 and hips 4
  • The following charts will help you match the designer’s size scheme for this product (indicated in the dropdown) to your usual size

size guide visible to all products

UKUSAEUBUSTWaistHips
XS 8 4 34 31/32 23/24 33/34
S 10 6 36 33/34 25/26 35/36
M 12 8 38 35/36 27/28 37/38
L 12 8 38 35/36 27/28 37/38
XL 10 6 36 33/34 25/26 35/36

Specifications:
Stock Number: DLEG0061
Displacement: 61.0 cc (3.7 cu in)
Bore: 1.85 in (47 mm)
Stroke: 1.38 in (35 mm)
Total Weight: 4.0 lb (1814 g)
Output: 6 hp @ 7,500 rpm
Includes: Electronic ignition module, muffler, spark plug, standoffs, spiral wire wrap, connector safety clips.
Requires: unleaded gasoline, 2-cycle oil, ignition battery & propeller
Suggested Propellers: 22 x 10, 23 x 8, 23 x 10, 24 x 8

DLE-61 Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
Gas/Oil Mix: 30:1
Replacement Spark Plug: DLEG4026
Static Thrust: 20.9 lb (9.5 kg) @ 328 feet altitude, 18.7 lb (8.5 kg) @ 1,800 feet altitude
Weight Breakdown: Engine: 2.8 lb (1273 g), Muffler: 3.9 oz (110 g), Ignition Module: 3.9 oz (110 g)
